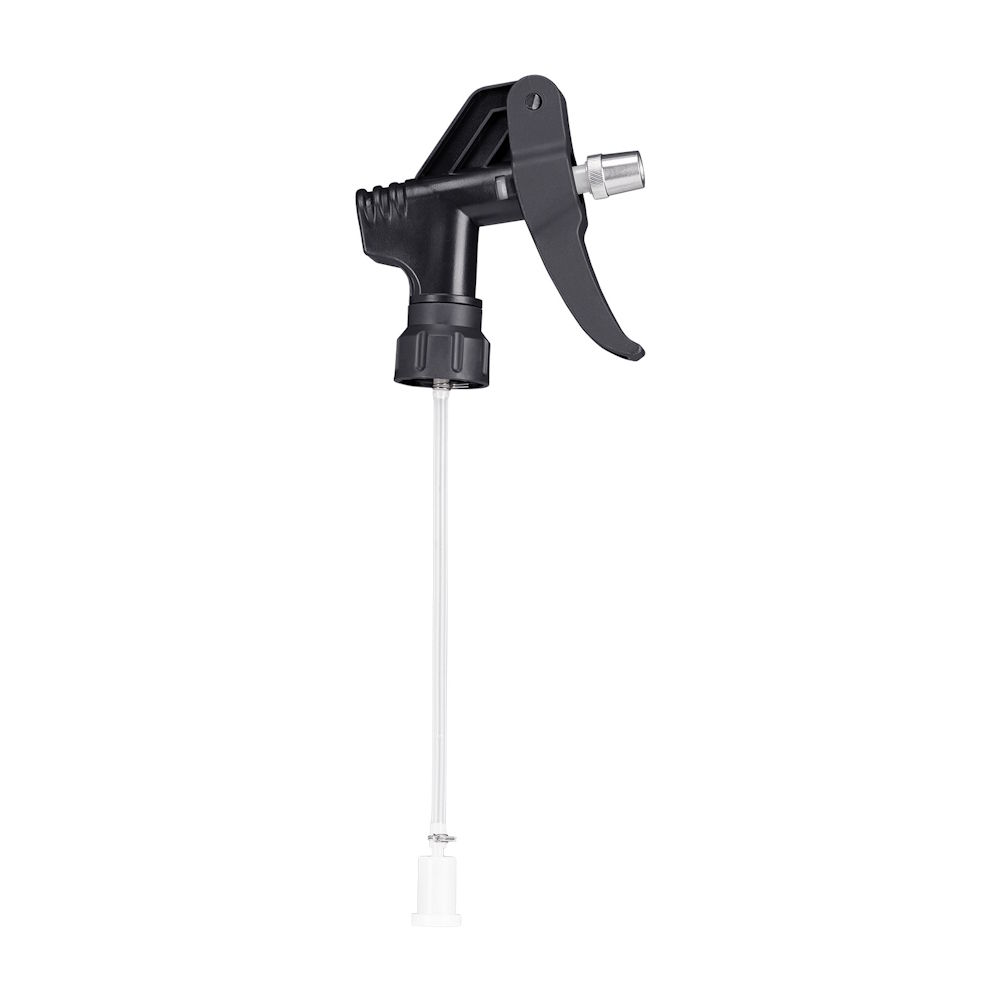

Hochwertiger Zerstäuberkopf
mit Doppelhubfunktion-SRL 207
Technische Daten
Sprühvolumen pro Doppelhub (ml): 1,4
Schlauchlänge (mm): 207
Werkstoffe der medienberührenden Teile
Pumpwerk: Spezial-Kunststoff
Dichtung: FKM
Saugrohr: Spezial-Kunststoff
Druckfeder und Kugel: Edelstahl
Verstellmutter: Edelstahl
Abmessungen LxBxH (mm): 293 x 136 x 35
Spezifikation
● Flexibler Saugschlauch (86 569 002)
● Präzisionsdüse, einstellbar, aus Edelstahl (82 425 878)
Besondere Merkmale
● Feines Sprühbild
● Vollkegel einstellbar
● Saugschlauch mit Gewicht ermöglicht Nutzung auch in waagrechter Behälterposition (0° – 180°)
Sprayer head with double-action strokes
Technical data
Spray volume per cycle (ml): 1,4
Hose length (mm): 207
Materials of parts in contact with liquid
Pump: special plastic
Seal: FKM
Suction pipe: special plastic
Pressure spring and ball: stainless steel
Adjusting nut: stainless steel
Dimensions LxWxH (mm): 293 x 136 x 35
Specification
● Flexible suction hose (86 569 002)
● Adjustable stainless steel nozzle (82 425 878)
Special notes
● Fine spray pattern
● Adjustable to full conical pattern
● Suction hose with weight to also allow the use in a horizontal bottle position (0° -180°)
● Recommended for use with a variety of detergents, solvents and cleaning agents
